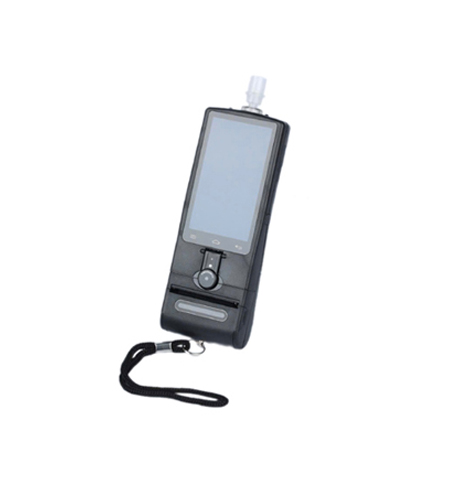

Device for measuring alcohol EGB39

Description

Using electrochemical sensors for high accuracy Self-checking air cleanliness feature: the device automatically blows moisture and alcohol remaining in the machine out after each measurement to ensure the next measurement will be effective. Highest accuracy and fastest recovery time 4.5 inch touch screen for easy device control Stores up to 150,000 measurement results with full information about the tests Automatic reminders machine calibration after 12 months. Use 3.7V / 3600mAh Lithium-ion rechargeable battery. Connect USB to computer to download test result information. Quick measurement time: each measurement only takes about 3 seconds. Thermal printer integrated on the machine Integrated GPS positioning.

Specification

Sensors: Electrochemical sensor

Measurement mode: Active and passive

Measuring range: 0-4.5mg/L BrAC

Accuracy: ± 0.02 mg/L at 0.4 mg/L

Calibration time: 12 months / 1 time

Inspection reminder: Have

Screen: 4.5 inches

Memory: 150,000

Printer: Integrated thermal printer

Wireless connection: Wifi, Bluetooth / 4G (optional)

GPS: Integration

Flash: There are 2 flash lights to support lighting

Camera: 5MP

Boot time: Under 5 seconds

Time blows: 4 seconds

Response time: 2-3 seconds

Recovery time: 3 seconds

Power supply: Lithium-ion 3.7V/3600mAh

Battery Life: Work continuously for at least 8 hours after fully charging

Storage conditions: -20°Cto +70°C. Humidity: 30 to 90% RH

Operating temperature: -20°C to +45 °C

Download data: Connect to PC via USB port

Size: 208*78*37 mm

Weight: 360g including battery

DOWNLOAD CATALOGUE
