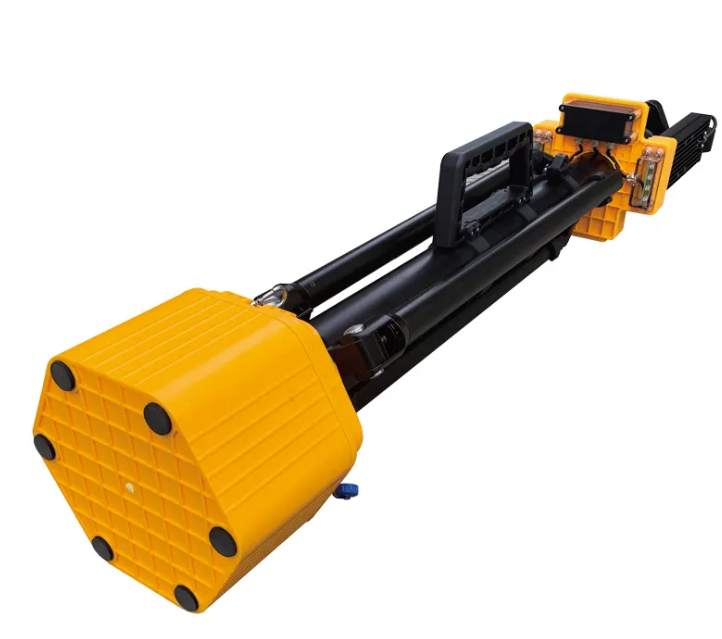

Portable area light EGL898

Description

EGL898 is a versatile field lighting solution specifically designed for public security,traffic control and emergency response scenarios.

Applied to the lighting of public security, patrol cars, and sudden vehicle night inspections; emergency, fire front-line rescue and accident, and disaster scene lighting; traffic accident investigation and rescue sites and highway inspection lighting; Large-scale mobile lighting for emergency rescue in electricity and other industries, explosion-proof construction sites.

Adopts safe, rubber-sealed, and explosion-proof structure design, and the overall protection level reaches IP66, which can be used for a long time in harsh environments such as outdoor rain and snow.

High-efficiency LED light source, which is energy-saving and environmentally friendly, with high lighting brightness and long service life; the maximum lighting power is 190W, which can meet the large-scale lighting needs of various construction sites.

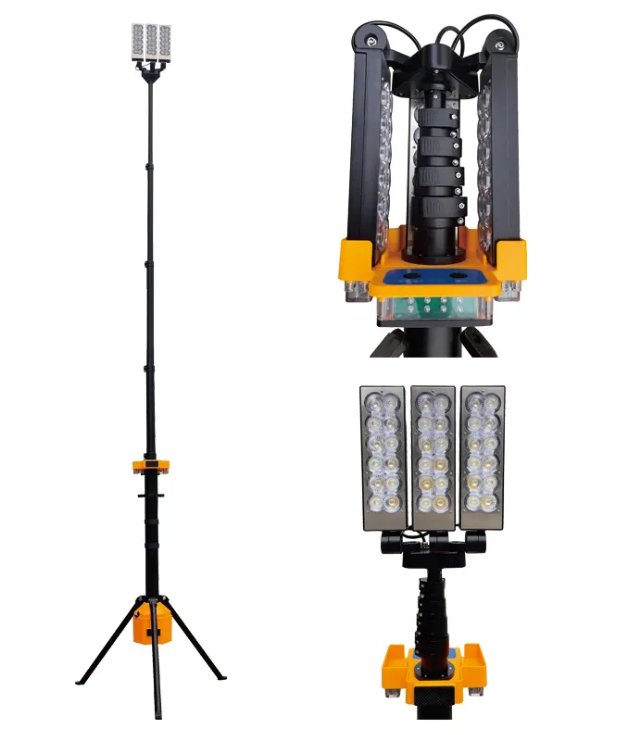

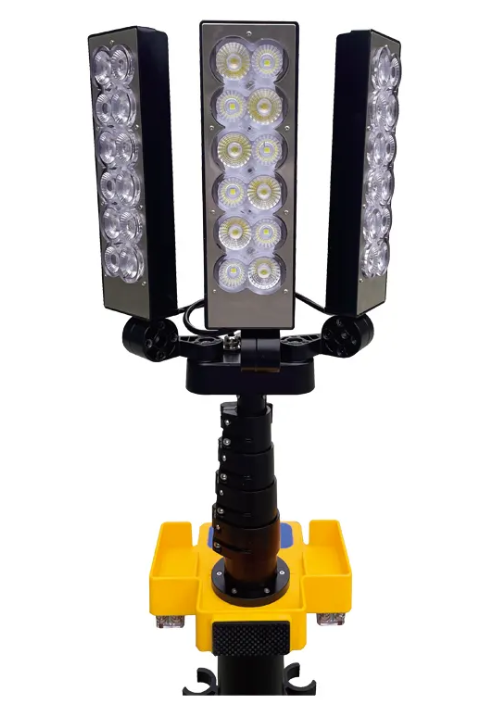

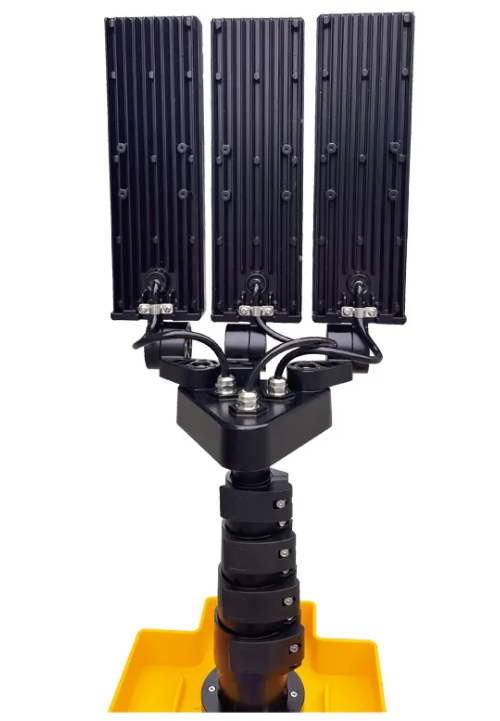

Three-lamp head design, the irradiation direction and irradiation angle can be adjusted horizontally and vertically to realize 360 ° surround lighting and single-side lighting in three directions. The height of the lamp head can be adjusted through five-section lifting and retracting rods, and the maximum lifting height is greater than 4m.

Include a large-capacity high-energy lithium battery pack with low battery self-discharge rate. The lighting time requirements of strong light for 6.5 hours, working light for 10 hours, and weak light for 13 hours after full charged. Has overcharge, over-discharge and short circuit protection function, safe and reliable.

The front and both sides of the lamp are equipped with bright red and blue warning lights that can be turned on separately, with a visual distance of up to 1Km, reminding pedestrians and vehicles to pay attention to ensuring the safety of the work site and personnel.

Equipped with triangular legs, which can greatly improve the stability of the lamp. The operation is simple and convenient for portable and mobile lighting.

Dual control: the lighting operation panel can realize three-level dimming, warning light on and five-grid segmented power check;

Small size and light weight, it can be carried in various ways such as hand-carrying and backpacking.

Specification

Rated voltage: DC22.2V

Battery capacity: 25Ah

LED light:

  • Rated power: 190W
  • Life time: 100000h
  • 10m illumination: 700lm

Type: Flood + Spot

Warning light: Red-blue

Lighting time (Flood + Spot):

  • Strong   ≥ 6.5h
  • Medium: ≥ 10h
  • Dim: ≥ 13h

Charging time: 4.5h

Dimension Extended: 790*790*4000mm

Weight: 12.5kg

Protection level: IP66
