Description
EVIDENTIAL ACCURACY & HIGH DURABILITY

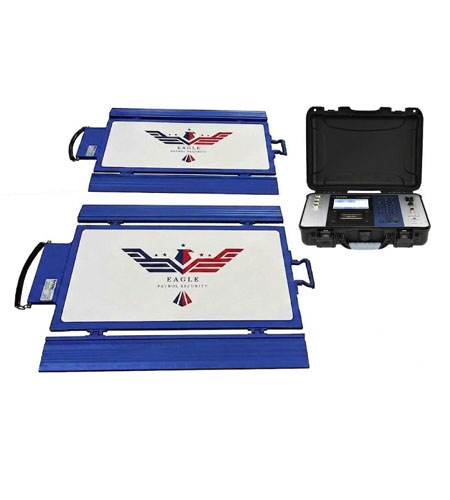

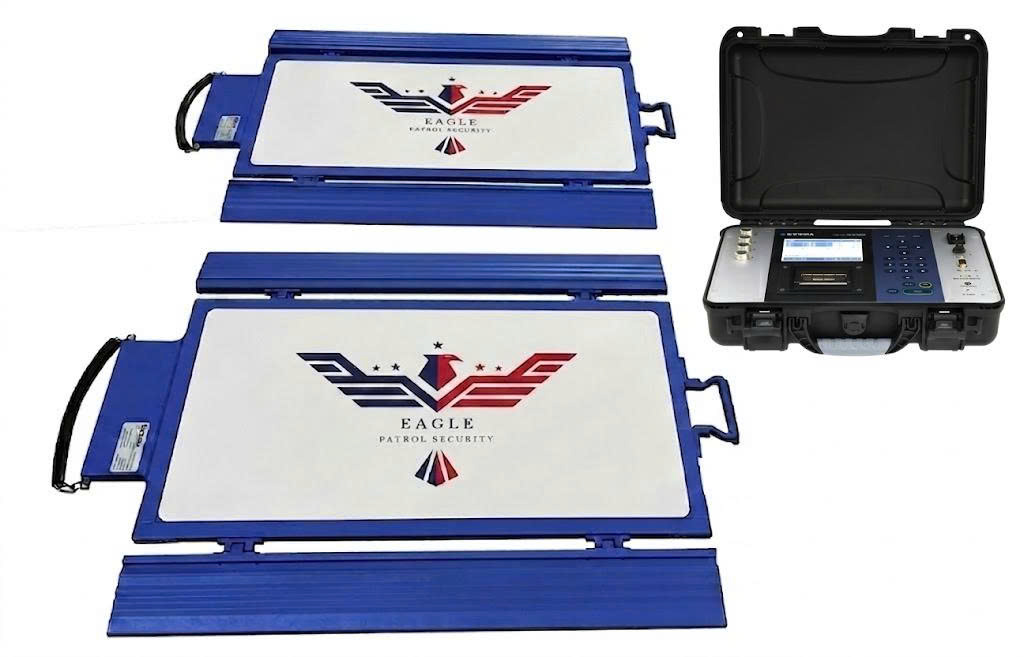

The system is equipped with 20 independent load cells evenly distributed across high-strength aluminum alloy weighing pads. Ultraslim profile (2.0 cm thickness) and lightweight design (22 kg/pad) ensure rapid field deployment.
WIRELESS DATA TELEMETRY (4G/5G/Wi-Fi)
Real-time data transmission from field inspection sites to the Operations Control Center. Wireless Bluetooth communication between weighing pads and indicator unit exceeds 30m.
QR CODE SCANNING & INFORMATION MANAGEMENT
Integrated QR code scanning for rapid entry of Driver's License, Official ID, and Chip-based Citizen ID data. Supports both Static (WIM/Static) and Dynamic Weighing modes.
Specification
1. WEIGHING PADS
Capacity Wheel Load: Up to 20,000 kg | Axle Load: Up to 40,000 kg
Weighing Range / Scale Interval: 200 kg – 20,000 kg per pad (Verification scale interval d = 10 kg)
Safe Overload /Accuracy Class: 120% F.S.
Accuracy Class: Class 1
Construction & Coating :Heavy-duty aluminum alloy, industrial powder-coated finish
Dimensions & Weight: 980 mm × 550 mm × 20 mm (H)
Weight: 22 kg / pad
Load Sensors 20 independent strain-gauge load cells per pad
Connectivity & Protection: Wireless Bluetooth (>30m line-of-sight)
Ingress Protection IP68
Power Supply High-capacity rechargeable Lithium battery (55 hours operation)
2. CENTRAL CONTROL INDICATOR UNIT
Enclosure Design Ruggedized carrying case: dustproof, moisture-proof, shock-resistant
7.0-inch color LCD touchscreen, intuitive graphic UI
Built-in high-speed thermal printer (inkless operation)
Interfaces & Connectivity: Bluetooth receiver, USB host port, 4G/5G/WiFi module support
Power Supply & Operating Time: AC 110/220V dual voltage or Internal battery (60 hours continuous)
